Cedar Shingles for Siding

Enjoy the beauty of new cedar siding

Cedar is one of the most common and one of the best natural materials used for siding. Natural cedar shingles create a timeless appeal that can transform your  home into a work of art.  Cedar shingles not only offer a very high level of protection, but also have great insulating characteristics and a low carbon-footprint, which makes them a great choice for builders who want to create energy-efficient "green" construction. Western Red Cedar is the most popular choice of Cedar varieties, and is prized for its longevity, low maintenance, its natural resistance to rot and insects, its insulating characteristics, and most of all, its beauty and character.

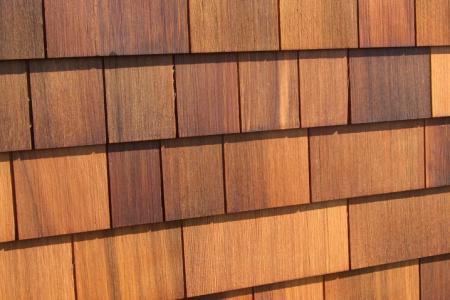

Rebutted/Rejointed sidewall Shingles are specially designed for exterior and interior walls. Sidewall cedar shingles add beauty, texture, durability and insulating qualities to either new construction or remodeling and renovation of existing structures. Manufactured from Number 1 Grade Blue Label or Number 2 Grade Red label Certigrade® red cedar shingles, trimmed for parallel edges with butts sawn at right angles. Available in both sawn, sanded, and grooved face textures.  Rebutted and Rejointed (R and R) shingles. This process ensures that they are very precisely milled tight specifications.

Finishes

Cedar shingles come in a variety of finishes that help you capture the look you want.


Natural

Primed Grey

Primed White

Many other special order colors can be obtained upon request.

Grade 1

Lengths 16-inch, 18-inch, 24-inch; width 4" minimum; thickness of 16-inch is 5/2" (5 butts together measure 2" thick), 18-inch is 5/2-¼" thick, 24-inch is 4/2" thick. Clear heartwood: 100% edge grain; no defects.


Grade 2

Lengths 16-inch, 18-inch, 24-inch; width 4" minimum; thickness of 16-inch is 5/2" (5 butts together measures 11" and 16" clear or better on 16-inch, 18-inch and 24-inch shingles, respectively. Limited sapwood and flat grain are allowed. Limited knots and defects are allowed above the clear portion.

Fancy Butt Red Cedar Shingles

Fancy-Butt Red Cedar Shingles are a specialty product used to provide a variety of designs that add charm and an immediate visual impact to exterior and interior wall surfaces and roofs.
These shingles are recommended for use on exterior and interior walls, roofs of 4:12 slope and steeper, wherever a decorative elegance is desired.

Roof Exposure = 5"
Wall Exposure = 7½" for exteriors, 10" for interiors

Cuts
Shown below are six of the most popular designs. They can be combined to make an unlimited number of patterns. Fancy-Butt shingles can be custom produced to individual orders.

    Hexagonal

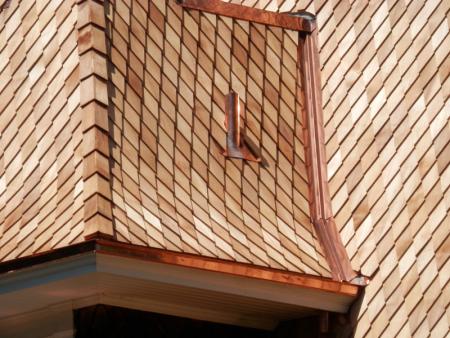

      Diamond
         Arrow
       Round
   Octagonal
  Fish Scale



Cedar Shingles come in three Lengths

Rebutted and Rejointed (R and R) shingles. This process ensures that they are very precisely milled tight specifications.

16 inches long, 4" minimum width,  5/2" (5 butts together measure 2" thick)
Clear heartwood: 100% edge grain; no defects.
18 inches long, 4" minimum width, 5/2-¼" ( (5 butts together measure 2-¼" thick)
Clear heartwood: 100% edge grain; no defects.

24 inches long, 4" minimum width, 4/2" ( (4 butts together measure 2" thick)
Clear heartwood: 100% edge grain; no defects.
